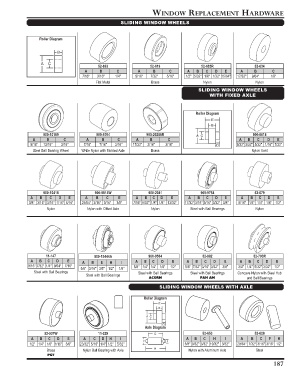

WindoW Replacement HaRdWaRe

SLIDING WINDOW WHEELS

Roller Diagram

52-693 52-619 52-683R 52-634
A B C A B C A B C D E A B C
7/16" 3/16" 1/4" 9/16" 7/32" 5/16" 1/2" 5/32" 1/8" 1/32" 15/64" 17/32" 9/64" 1/8"
Flat Metal Brass Nylon Nylon
SLIDING WINDOW WHEELS
WITH FIXED AXLE

Roller Diagram

900-10189 900-5704 900-20288R 900-8618
A B C A B C A B C A B C D E
9/16" 13/16" 3/16" 7/16" 7/16" 3/16" 17/32" 3/16" 3/16" 9/32" 3/32" 5/32" 1/16" 7/32"
Steel Ball Bearing Wheel White Nylon with Molded Axle Brass Nylon Vent

900-10418 900-9814W 900-2041 900-9764 52-679
A B C D E A B C E A B C D E A B C D E A B C D E
3/8" 3/16" 3/16" 1/16" 5/16" 25/64" 3/16" 3/16" 3/8" 7/16" 5/32" 1/8" 1/8" 13/32" 17/32" 3/16" 3/16" 3/32" 3/8" 9/16" 1/4" 1/4" 1/8" 1/2"
Nylon Nylon with Offset Axle Nylon Steel with Ball Bearings Nylon

11-147 900-15444A 900-9564 52-982 52-703R
A B C D E A B E H I A B C D E A B C D E A B C D E
9/16" 7/32" 1/4" 9/64" 7/16" 5/8" 3/16" 3/8" 1/2" 1/8" 5/8" 1/4" 1/4" 1/8" 1/2" 5/8" 7/32" 3/16" 3/32" 3/8" 3/4" 1/4" 5/32" 3/32" 1/2"
Steel with Ball Bearings Steel with Ball Bearings Steel with Ball Bearings Concave Nylon with Steel Hub
Steel with Ball Bearings
ACORN PAN AM and Ball Bearings
SLIDING WINDOW WHEELS WITH AXLE

Roller Diagram

Axle Diagram
52-937W 11-229 52-653 52-628
A B C D E A C D H I A B C H I A B C F H
1/2" 1/4" 1/8" 1/16" 3/8" 23/32" 5/16" 1/4" 1/2" 5/32" 3/8" 9/32" 3/32" 19/32" 3/32" 29/64" 7/32" 3/16" 3/16" 1/2"
Brass Nylon Ball Bearing with Axle Nylon with Aluminum Axle Steel
PGT
